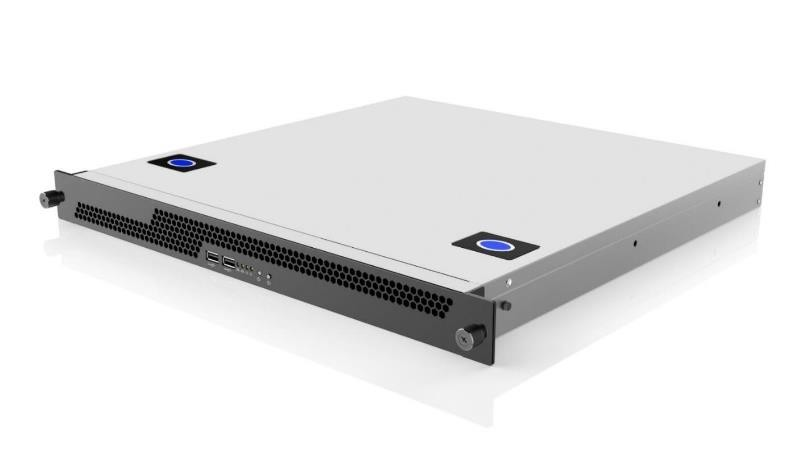

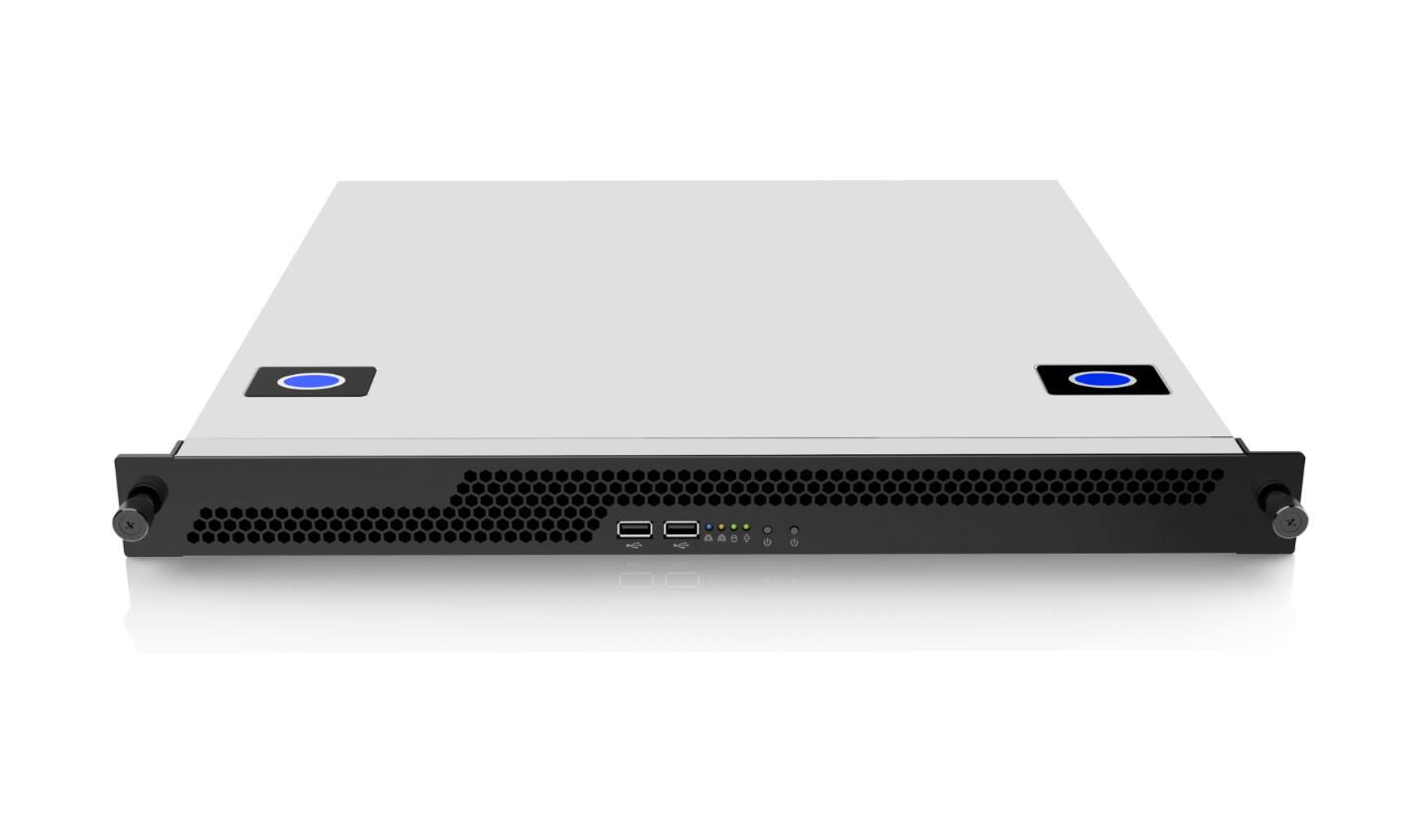

ESD KU 1102-V6 1U Short-Depth Server
KU1102-V6 is an entry-level 1U single-processor server launched by ESD. It features the Intel® Xeon® E3-1200V5/V6 (Kaby Lake) series processor, which combines small form factor and low power consumption to deliver powerful performance in various applications such as web, email, cache server, ERP server, and lightweight databases.
The BMC management module provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment functions, simplifying maintenance work, speeding up problem-solving, and improving system availability.
Product Features Excellent Performance:
• Powered by Intel® Xeon® E3-1200v5/v6 single-processor series
• Four-channel DDR4 ECC memory
• Computing performance sufficient to handle various lightweight applications
Rich Configuration:
• Supports two SATA/SSD 6Gb/s disks
• Integrated Intel® dual-port 1000M network
• 450mm depth can be placed in a 600mm depth network cabinet, making it especially suitable for edge room deployment
Easy Management:
• BMC management module provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment functions
• WEB interface simplifies maintenance work, speeds up problem-solving, and improves system availability
Application Scenarios:
• Suitable for various applications, including web, email, cache server, ERP server, and lightweight databases
|
Component |
Description |
|
Specification |
1U Rack-Mounted Server Dimensions 43mm×430mm×450mm (H×W×D) |
|
Processor |
Intel® Xeon® E3-1200v5/v6 Power Consumption 80W |
|
Chipset |
Intel® C232 |
|
Memory |
Support Supports 4 channels of DDR4 ECC 2400MHz memory; Supports a maximum of 128GB of memory |
|
Storage |
Supports 2 3.5"/2.5" SAS/SATA3.0 hard drives |
|
Network |
Intel® I210-AT Dual Gigabit Network |
|
PCIe Expansion |
1 x PCIe 3.0 x8 expansion slot |
|
Display |
AST2400 |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、COM、4 x USB 2.0、2 x USB 3.0 |
|
Power Supply |
400W Power Supply |
|
Operating System |
Windows Server、Centos/Redhat Suse、Ubuntu 、Vmware ESXI、XenServe |
|
Working Environment |
Temperature：10℃～ 35℃，Humidity：8% ～90% |
