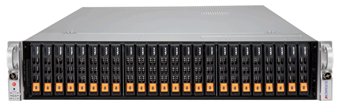

ESD KU 2424-V3 2U Quad Socket Server
The KU2424-V3 is a 2U four-socket rack server from ESD, which features four 3rd Generation Intel Xeon Scalable processors in a compact form factor, providing up to 112 cores and 224 threads per system, supporting up to 18TB of memory.
It has 24 hot-swappable 2.5" NVMe/SAS3/SATA3 hard drives, which have low latency and power consumption, and are suitable for a variety of applications. Additionally, it supports four FHFL GPUs, enabling powerful heterogeneous computing and easy management for high-load tasks, which can be configured flexibly according to business needs, achieving excellent cost-performance and energy efficiency.
Excellent Performance
• Four 3rd Gen Intel Xeon Scalable processors, with CPU TDP up to 205W
• Supports up to 28 cores per CPU and 8-channel memory, up to 48 3200MHz DDR4 memory
• Provides 112 cores and 224 threads per system, supporting up to 18TB of memory
Rich Expansion
• 24 hot-swappable 2.5" NVMe/SAS3/SATA3 hard drives
• Supports 10 PCIe 3.0 expansion slots
• Supports 4 FHFL GPUs
Easy Management
• BMC management module provides SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, OS deployment and other management functions
• Web interface simplifies maintenance work, speeds up problem resolution, and improves system availability
Application Scenarios
• Widely used in AI, business intelligence, ERP, CRM, scientific virtualization, in-memory databases, HCI, SAP HANA and many other industries
|
Component |
Description |
|
Form Factor |
2U rack-mounted; 89 x 439.5 x 803mm (H x W x D) |
|
Processor |
4 x Intel® Xeon® Ice Lake series processors, up to 270W |
|
Chipset |
Intel® C621 |
|
Memory |
Supports 48 x DDR4 ECC LRDIMM/RDIMM memory Supports frequencies of 2666/2933/3200MHz Supports up to 12TB |
|
Storage |
Supports 24 x 2.5" SAS/SATA/NVMe hard drives Supports 2 x M.2 hard drives |
|
Network |
2x 10GbE BaseT + 2x 10GbE SFP+ Intel® X710-TM4 (Optional) AIOM 100G QSFP 28 |
|
PCIe Expansion |
4 x PCIe 3.0 x16 expansion slots 2 x PCIe 3.0 x8 expansion slots 4 x PCIe 3.0 x8 expansion slots (optional) |
|
Management |
IPMI 2.0 |
|
Other Interfaces |
VGA、COM、2 × USB 3.0 |
|
Power Supply |
Titanium-grade 1600W 1+1 redundant |
|
Operating System |
Windows Server、Centos/Redhat Suse、Ubuntu 、Vmware ESXI 、Xen Server |
|
Operating Environment |
Operating temperature: 10℃~35℃, Operating humidity: 8%~90% |
