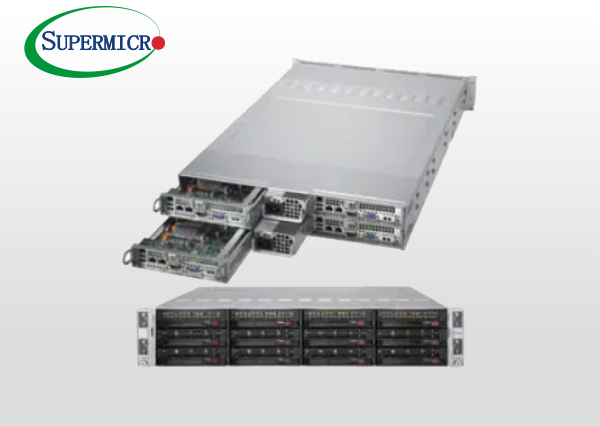

Supermicro 6029TR-HT
1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors，Dual Socket LGA-3647 (Socket P)，supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s；
2. Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz Or 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
3. 4 PCI-E 3.0 x16, 2 PCI-E 3.0 x8, 2 PCI-E 3.0 NVMe x4 Internal Port(s)；M.2 Interface: PCI-E 3.0 x4，M.2 Form Factor: 2260, 2280, 22110，M.2 Key: M-Key；
4. Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10；
5. Dual LAN with 1GbE LAN with Intel® X722。
High Performance
Each node supports 2 Intel® Xeon® Cascade-Lake Platinum/Gold/Silver/Bronze series scalable processors and 6-channel 2TB DDR4 ECC RDIMM memory, providing up to 50% performance improvement to meet various application scenarios.
Energy Efficient
The system adopts a unique design of multi-node sharing power supply and heat dissipation, which improves the utilization of hardware resources; the efficient 1+1 redundant power supply design is more energy-efficient than other solutions, reducing data center PUE.
Easy Maintenance and Management
(Node, hard disk, power supply) hot-swappable design reduces maintenance difficulty; with BMC management module providing SOL, remote KVM, remote power on/off, system monitoring, virtual media mapping, and OS deployment management functions, the system management is more convenient and reduces operational costs.
Application Scenarios
Data centers, cloud computing, hyper-convergence, HPC, and other compute-intensive applications.
|
Product SKUs |
|
|
SYS-6029TR-HTR |
SuperServer 6029TR-HTR (Black) |
|
Processor (per Node) |
|
|
CPU |
Dual Socket P (LGA 3647)P supports Up to 165W TDP；
2nd Gen Intel® Xeon® Scalable Processors
and Intel® Xeon® Scalable Processors‡, Support CPU TDP 70-140W |
|
Cores |
Up to 22 Cores |
|
Note |
*Processors ending N or S (such as 6230N, 5220S) are not supported |
|
Note |
‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) |
|
System Memory (per Node) |
|
|
Memory Capacity |
8 DIMM slots Up to 2TB 3DS ECC DDR4-2933MHz† RDIMM/LRDIMM |
|
Memory Type |
2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM |
|
Note |
† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro |
|
On-Board Devices (per Node) |
|
|
Chipset |
Intel® C621 chipset |
|
SATA |
SATA3 (6Gbps); RAID 0, 1, 5 support |
|
Network Controllers |
Intel® C621 chipset |
|
IPMI |
Support for Intelligent Platform Management Interface v.2.0； IPMI 2.0 with virtual media over LAN and KVM-over-LAN support； |
|
Graphics |
ASPEED AST2500 BMC |
|
Input / Output (per Node) |
|
|
SATA |
3 SATA3 (6Gbps) ports |
|
LAN |
2 RJ45 Gigabit Ethernet LAN ports 1 RJ45 Dedicated IPMI LAN port |
|
USB |
2 USB 3.0 ports total (rear) |
|
VGA |
1 VGA port |
|
Serial Port / Header |
1 COM Port (1 rear) |
|
Others |
TPM 2.0 Header |
|
System BIOS |
|
|
BIOS Type |
AMI 32Mb SPI Flash ROM with UEFI |
|
Management |
|
|
Software |
Intel® Node Manager； IPMI 2.0； KVM with dedicated LAN；NMI；SSM, SPM, SUM；SuperDoctor® 5； Watchdog |
|
PC Health Monitoring |
|
|
CPU |
Monitors for CPU Cores, Chipset Voltages, Memory； 4+1 Phase-switching voltage regulator |
|
FAN |
Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
|
Temperature |
Monitoring for CPU and chassis environment； Thermal Control for fan connectors |
|
Dimensions and Weight |
|
|
Width |
17.25" (438mm) |
|
Height |
3.47" (88mm) |
|
Depth |
28.5" (724mm) |
|
Weight |
Gross Weight: 73.5 lbs (33.34kg) Net Weight: 52.1 lbs (23.63kg) |
|
Available Colors |
Black |
